Project:

3D Scan of a complex of buildings placed at Geneva, to produce orthophotos and 2D CAD plans for the facades of them

Deliverables:

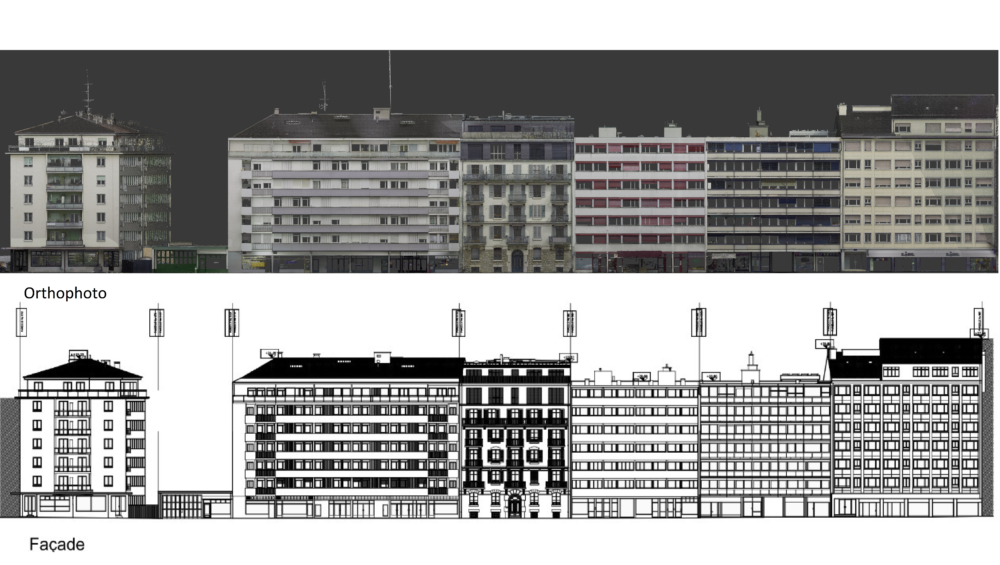

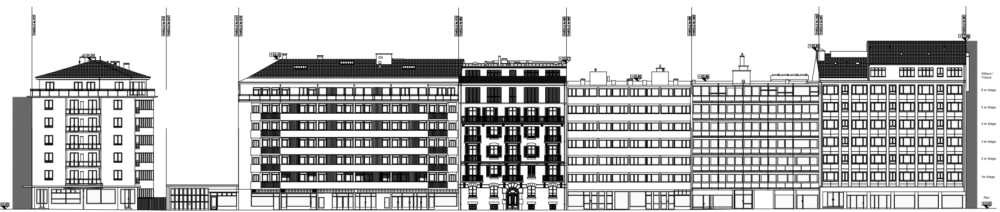

  • Plans of the facades
  • Orthophotos

Method used :

3D Laser Scanning

Device used :

LEICA 3D Scanner 360RTC

Software used :

Cyclone Field, Cyclone Register 360, Cloudworx

Time on site / Number of setups :

1 day / 40 setups

Total project delivery time :

10 days

Accuracy

Angular accuracy 18”

Range accuracy:

1.0 mm + 10 ppm

3D point accuracy:

2.9 mm @ 20 m
